IvsNewsManager Server is a
revolutionary solution for the production of television
Infochannel kind programs, adaptable to any kind of demand;
television news, live sports, elections, video portal, advanced
live titling and now with the option ivsVideoJUKEBOX it is
possible to broadcast video on demand or interative
games.
It was realized "around" real needs of
television broadcasters who have collaborated with us to the
realization of the project.
IvsNewsManager Server improves any other pre-existent
realizations under all the points of view; with only one system,
thanks to the Leitch dpsQuattrus power you can get the most
advanced video server and infochannel, we are able to add 4
video sources, live and coming from Hard Disk Drives (LAN and
SAN are fully supported) and to scale, rotate and to position
them through four high quality 3D Hardware DVEs.

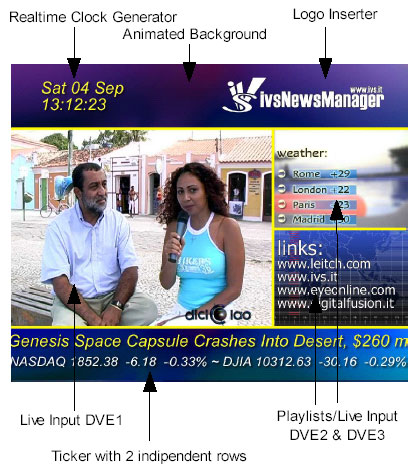

Twelve indipendent graphic layers
are used to handle: two tickers (two indipendent crawl rows,
different for color, size, font, speed, direction, trasparency,
shadow), a real time customizable clock (date, day, year, hh:mm:ss)
and others 9 graphic layers (to add other news, broadcaster,
sponsor, decorative elements, logos, etc.).
Video quality is the
highest available, all graphics and videos can be 4:2:2
compressed or uncompressed. Data rates can be from 8 to 168 Mbps
per each video or graphic stream.
All the playable elements (organized in 13 playlists and 3 panels) are totally dynamic; it is
possible to change all during the live broadcast in both
remotely by clients and locally using the main user
interface; add, remove, edit ,change playlist order and trim
IN-OUT points of the news, video clips and graphics during
the playback. It is possible to change color, size, shadows,
transparency and position of the Crawls and static text news
in live broadcast session, as well as changing speed and
direction of Crawls.
It is possible manually swap audio and/or
video streams on DVEs or AV inputs using included software
switcher.
Some presets are bundled with the software, but thanks to the built-in tools (DVEs, graphic layers, etc. ), any users can create his own presets very easily.
All the news and in general all
playlists can be updated or added both locally and remotely,
through unlimited clients or automatic .xml and .txt file
recognition.
For interactive TV programs, ivsNewsManager Server can handle SMS sent by mobile phones, not only to show them live, but to deliver playlists too (e.g. video juke box, live polls, etc.)
IvsNewsManager Server can be easily
integrated with third party softwares to add other custom
features. (ivsNewsManagerSDK)
Feature:
3 AUDIO/VIDEO clips
PLAYLISTS: Up to 168 Mbits for each video in playlists.
2 Crawl PLAYLISTS
1 Clock/Timer Generator
5 Title/NEWS Playlists
3 Graphics/Logo Playlists:
24 or 32 Bit TGA/TIFF files
1 Graphic 720x576 32bit
Available
Clients:
It is possible to add unlimited
clients allowing to workgroups to collaborate to the
workflow sharing in real time news and playlists building
the same project in absolute security.
ivsNewsAutoUpdater Client:
This client imports news from
xml or txt files received via ftp, LAN or internet provided
by news vendors or from in site journalists. News are
filtered according their category (Sports, economics, etc.)
allowing to the user to define in which zone of the screen
to display the desired category. Once news are imported, the
user can edit, modify, add or delete news, whithout
affecting the live playback.
ivsNewsManager Server Automation
Client:
This client allows the scheduling of all the video and
graphic playlists in order to satisfy all requirements of any
broadcast network interfacing also a SQL database.
ivsVideoJUKEBOX Client:
This client allows to change or to add audio/video clips in
playlists, simply receiving SMS from users in way to
emulate a jukebox.
ivsSportManager Client:
Live sport show often needs for
a very quick results and standings update. ivsSportsManager
helps TV stations to create amazing presets and to update
results and standings taking datas from an .xls or .mdb file
(Microsoft Excel or Access files). Updating the results, the
database automatically updates the standings, and in less
than 1/10 of second all graphics are "on air" ready.
ivsSMSManager Client:
Interactive TV becomes more
important day by day. ivsSmsManager can display SMS sent
from anywhere whithout retyping the text, allowing the user
to filter, edit,modify or delete them. SMS can be used for
fee televoting, an important earning for today's TV
productions. ivsSmsManager adds the capability to
automatically update the results of the public vote,with
appropriate text, pictures and videos
Collaborative
Workflow:
ivsNewsManager bundles
unlimited licences of ivsNewsEditor, a stand alone news text
editor, that allows to workgroups to collaborate to the
workflow editing news and building the same project.
Video Inputs:
ivsNewsManager Server
supports different selectable inputs in live mode: SDI, DV, YUV Component, Y/C
Component and CVBS. Adding more any Quattrus hardware as the
cheaper Q2D-5010 it is possible add more live inputs.
Video Outputs:
IvsNewsManager Server
supports dual indipendent video outputs channels
contemporanely avalable in SDI, YUV Componet, Y/C Component
and CVBS.
Also, It is possible assign
each output channel to display one the Fill and one the Key
signal or it is possible to handle two different playouts
and relative group of playlists or share eventually the same playlists.
Video standards:
ivsNewsManager supports both Pal and NTSC.
HD version will be available soon with full Altitude support.
Audio I/O:
IvsNewsManager Server
supports Analog balanced and unbalanced, SPIDIF, AES EBU,
SDI embedded Audio I/O.
ivsNewsManager bundles
ivsAudioDelay, that allows to adjust audio delay to user's
needs.
AUDIO-VIDEO SWITCHERS
(NEW)
IvsNewsManager Server
supports a large number of switchers from Kramer and Leitch.
Languages:
Currently available in
Eng and Italian languages, ivsNewsManager Server and Clients
support quick translation into any languages, with any font
specifications.
Additional Informations
A turnkey ivsNewsManager Server price equipped with Leitch dps
Quattrus 4x4 may vary on system configuration and number of
inputs/outputs availability. Cheaper solutions, without Server/clients
or featuring Reality and Quattrus 0x4 hardwares are already
available.
ivsNewsManager is available as software only too in two
different and upgradable editions: Standard and Server.
ivsNewsManager Demo version is available as free download at
http://www.ivs.it: it is a full working
version with watermark logos and without saving capabilities.
If you need more infos:
please send e-mail to
info@ivs.it or
sales@ivs.it or visit
http://www.ivs.it/indexEng.htm
Company contact: please contact Mr. Paolo Castellano to
+39-3473890560 or
paolo.castellano@ivs.it
|
